A19/25 Pneumatic PP/PET Wide-Strap Strapping Tool-Shanghai We Pack Co., Ltd.

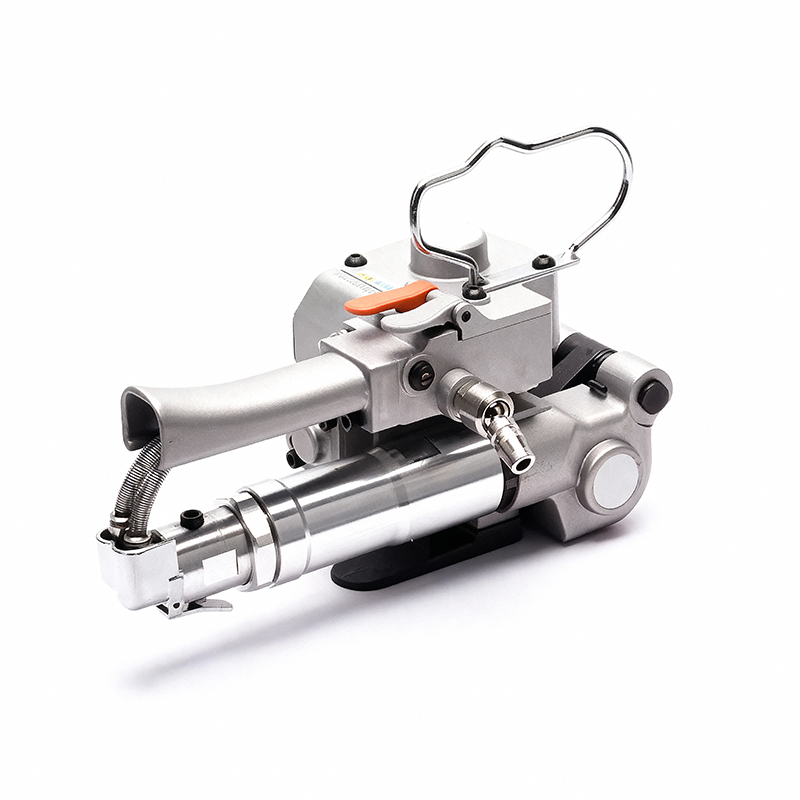

A19/25 Pneumatic PP/PET Wide-Strap Strapping Tool

Suitable for PET/PP straps and steel straps, realizes goods strapping via air pressure drive, fixes heavy/batch goods, and ensures stable transportation and warehousing.

Strong & efficient: 0.49-0.8MPa air pressure, pulling force ≥4.5KN, fast tightening speed, efficient for batch operations.
Wide compatibility: Works with various strap materials, supports different widths and thicknesses.
Easy to operate: Buckle-free friction hot welding, one-click strapping, portable and durable body.
Stable & reliable: High-strength material, suitable for industrial environments, with a low failure rate.
Industrial manufacturing: Batch strapping of heavy parts, equipment, and building materials.
Logistics & warehousing: Reinforcement strapping of palletized goods and large packages.
Building materials & stone: Strapping of panels, pipes, and finished stone products.
Metal processing: Batch factory strapping of steel and hardware.

Colour	Metallic grey
Apply strap	PP & PET
Seal straps form	Friction and hot welding
Specification (mm)	13-25
Strap width (mm)	0.5-1.5
Pull (N)	3500
Using air pressure (MPa)	0.5-0.8
Splicing time (s)	1-5 (Adjustable)
Dimensions (mm)	L278.5×H149.5×W173
Weight (kg)	3.8

Parameter Category	Parameter Name	XQD19/25	AQD19/25	A19/25	B19/25	CA19/25
Basic Attributes	Model	XQD19 (13-19mm strap) / XQD25 (19-25mm strap)	AQD19 (13-19mm strap) / AQD25 (19-25mm strap)	A19 (13-19mm strap) / A25 (19-25mm strap)	B19 (13-19mm strap) / B25 (19-25mm strap)	CA19 (13-19mm strap) / CA25 (19-25mm strap)
	Colour	Blue-black	Blue-black	Blue-black	Blue-black	Black
	Apply strap	PET & PP	PET & PP	PET & PP	PET & PP	PET (steel strap)
Specification Parameters	Packing belt width (mm)	13-19 / 19-25	13-19 / 19-25	13-19 / 19-25	13-19 / 19-25	13-19 / 19-25
	Packing belt thickness (mm)	0.5-1.2	0.5-1.5	0.4-1.35	0.5-1.5	0.5-1.2
	Air pressure (MPa)	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8
	Air consumption (L/min)	0.3	0.3	0.3	0.3	0.3
	Machine weight (kg)	3.8-3.9	3.8	3.5-4.0	3.65	3.6
	Machine size (mm)	280×160×180	279×150×173	280×160×185	280×160×180	278×150×173
Performance Parameters	Pull (N)	2800-3000	3500 (0.7MPa)	2800-3500	3500 (0.63MPa)	3500
	Seal form	Friction hot welding	Friction hot welding	Friction hot welding	Friction hot welding	Friction hot welding
	Sealing strength	~75%	>85%	~75%	~75%	~75%
	Splicing time (s)	2-5 (Adjustable)	2-5 (Adjustable)	2-5 (Adjustable)	2-5 (Adjustable)	2-5 (Adjustable)
	Motor type	Pneumatic motor	Pneumatic motor	Pneumatic motor	Pneumatic motor (low noise)	Pneumatic motor
Additional Parameters	Operation mode	Fully automatic: tensioning, locking, cutting, one-time completion	Fully automatic: tensioning, locking, cutting, one-time completion	Fully automatic: tensioning, locking, cutting, one-time completion	Fully automatic: tensioning, locking, cutting, one-time completion	Fully automatic: tensioning, locking, cutting, one-time completion
	Buckle type	Buckle-free (friction welding)	Buckle-free (friction welding)	Buckle-free (friction welding)	Buckle-free (friction welding)	Buckle-free (friction welding)
	Special configuration	Strap guide	Parallel strap trough	Noise reduction cover	Suspension operation	Noise reduction cover
