Interlocking Paper Corner Protector Manufacturing at Shanghai We Pack

Shanghai We Pack Co., Ltd. produces the Interlocking Paper Corner Protector as one of nine paper edge protection formats in our catalogue. Founded in 2019 as a subsidiary of Shanghai Dreammao Packaging Technology Co., Ltd., we operate as an integrated packaging manufacturer covering cargo securing, transport protection and loading optimization, with a 10,000 m² facility, 120 employees, nine production lines and dedicated R&D, testing and quality control teams.

The interlocking format exists for loads that need a rigid frame rather than a single corner. Tongue-and-groove profiles snap together without adhesive or tape, so several protectors become one self-supporting structure that can be built, adjusted and broken down on the loading dock.

How the Interlocking Geometry Works

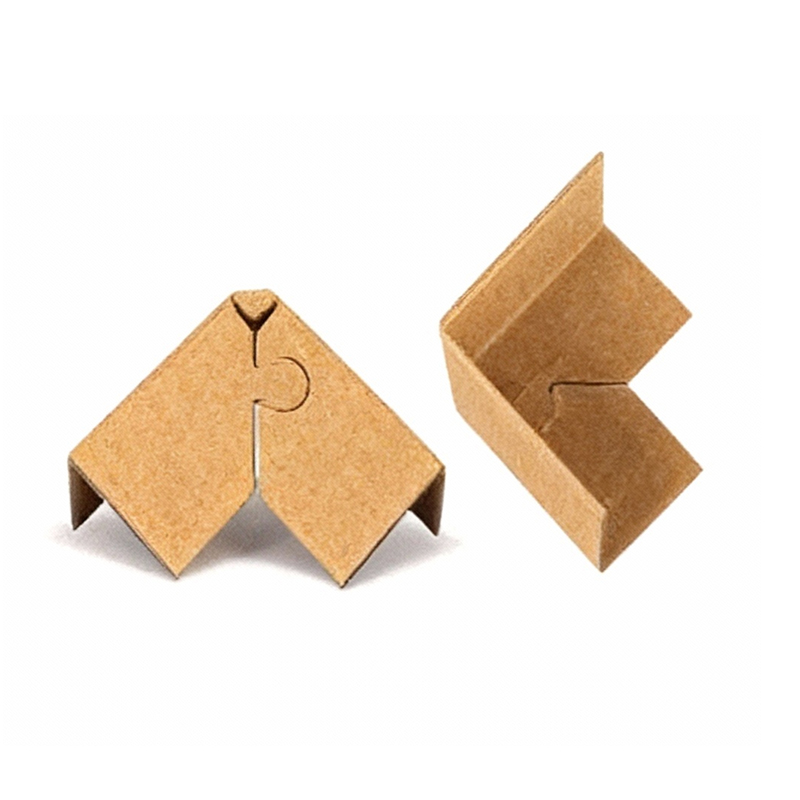

Each protector carries a formed tab on one end and a matching recess on the other. The two engage with a push fit, and the joint resists separation under the lateral and compressive forces that appear during stacking, strapping and road or sea transit. Because the connection is mechanical, there is no adhesive cure time, no tape consumption and no residue on the board when the frame is dismantled.

Self-supporting frames — four or more pieces lock into a closed rectangle that holds its own shape before strapping is applied.
Extended barriers — pieces chain along a long edge to protect panels, doors, profiles and furniture runs beyond standard protector lengths.
Custom partitions — interlocked runs divide a container or crate into compartments sized to the cartons being shipped.
Reusable configuration — the joint can be released and rebuilt when a loading plan changes.

Where Interlocking Protectors Fit in the Load

The format suits unitizing multiple boxes into a single stable block, building custom-sized partitions, and reinforcing long edges in furniture and panel packaging. It is also used where a pallet load needs a continuous protective rail under strap tension, so the strap bears on paper rather than on the product edge.

Typical cargo families include glass, ceramics and stone; metal and wood manufacturing; consumer goods and electronics; heavy equipment and machinery; and general export cartons moving through logistics and warehousing operations. Where the load also needs void filling or palletless handling, we combine the protectors with Dunnage Bag and slip sheet systems from the same production group.

Paper Corner Protector Range and Application Matching

Format	Profile	Application Fit
Interlocking	Tongue-and-groove ends, snap fit	Unitizing cartons, custom partitions, long-edge reinforcement, reusable frames
L-shaped	Two-leg right angle	Standard pallet and carton corner protection
U-shaped	Three-sided channel	Edge wrapping on panels, boards and frames
Ring-shaped	Closed loop	Coils, rolls and cylindrical goods
Folded U / Folded L	Multi-ply folded section	Higher edge impact resistance on heavy loads
Flat and Perforated	Flat board, optional perforation	Surface separation, layer padding, air movement
White	Coated white surface	Clean presentation, moisture-sensitive and food-adjacent cargo

Adjacent systems from the same group — Packing Strap, stretch film, anti-slip paper, slip sheets and dunnage bags — let a single shipment be specified as one coordinated protection package rather than a set of separately sourced consumables.

Critical Specifications We Confirm Before Production

Interlocking protectors are dimensionally driven. The tab pitch and engagement depth must match the leg geometry, and the board caliper must be stiff enough to hold the joint closed once the frame is standing. We fix these values against the actual carton or panel before tooling is set.

Leg dimensions — inner leg length A × B, matched to the product corner or carton edge.
Overall length — cut length per piece and the number of pieces per frame or barrier run.
Board caliper and ply — single or multi-ply construction selected against load weight and strap tension.
Corner angle — normally 90°, with the formed radius matched to the product edge.
Interlock fit — tab width, engagement depth and push-fit clearance for repeatable assembly by hand.
Moisture content — controlled at production and packing so the board does not soften in a closed container.
Print and surface — kraft, white or recycled board, with logo, handling marks or language-specific print.

Quality Assurance and Acceptance Testing

Our management system holds ISO 9001 certification, and products are produced against AAR, SGS, TUV and EN 1492-1 referenced standards. Quality control runs from incoming board through forming, cutting, interlock punching and final packing, with an in-house laboratory supported by third-party test houses for independent verification.

For an interlocking protector project, the acceptance set typically covers dimensional verification of leg length, cut length and tab geometry; a fit test confirming that pieces assemble and release by hand without tools; board caliper and moisture measurement; and compression or edge-crush testing at the working load point. Test reports are issued with the shipment where the project requires them.

Capacity, Customization and Delivery Scope

Nine production lines across a 10,000 m² facility support both frequent customization and stable volume, with annual output exceeding 20,000 tons across the group. Our third paper corner protection factory came into operation in 2023, and the group holds more than 30 patent certificates. Minimum order quantity starts at 100 pieces, which allows a trial run before a full program is committed.

OEM and ODM work covers size, load capacity, board material and printing, developed from your drawings or samples. Packaging solution planning is provided without charge, based on cargo type, loading method, load requirement, budget and print needs. Trade terms include EXW, FOB, CIF and DDP, with the plant located roughly 25–35 km from Shanghai Port and about 30 km from Pudong International Airport.

Information We Use to Configure Your Solution

Project Input	What It Determines
Cargo type, weight and edge geometry	Board caliper, ply count, leg dimensions
Loading method and transport mode	Frame layout, barrier length, interlock pitch
Strap type and tension	Compression requirement at the protector edge
Carton or panel dimensions	Cut length, pieces per frame, partition sizing
Print, branding and language	Surface finish and print plate setup
Order volume and delivery schedule	Production line allocation, packing format, trade term
Destination port and compliance needs	Test reports, moisture control, documentation set

Send the working point, the material and the production target, and we return a configuration with dimensions, board grade, packing format and a quotation built on the same data.

Frequently Asked Questions

What makes an interlocking protector different from a standard L-shaped protector?

The L-shaped protector protects one corner on its own. The interlocking version adds a formed tab and recess so several pieces join mechanically into a frame, partition or continuous edge rail. No adhesive or tape is needed, and the assembly can be taken apart and rebuilt when the loading plan changes.

Can you produce to our carton dimensions and print our branding?

Yes. We work from your drawings or physical samples and set leg length, cut length, board caliper, ply count and interlock pitch to match. Printing covers logos, handling marks and language-specific text on kraft, white or recycled board as part of our OEM and ODM service.

What is the minimum order quantity for a first trial?

Our minimum order quantity starts at 100 pieces, which lets you run a trial loading before committing to a full program. Larger and repeat volumes are produced on the same lines, so the specification does not change between the trial and the production order.

How do you control moisture in paper protectors for sea freight?

Moisture content is controlled during production and again at packing, because board that absorbs water loses stiffness and the interlock fit loosens. For long ocean routes we set the moisture target with the shipment and confirm it before the container is sealed.

Which test reports and documents accompany a shipment?

Products are produced against AAR, SGS, TUV and EN 1492-1 referenced standards under an ISO 9001 management system. Dimensional records, moisture measurements and compression or edge-crush results are available, with third-party reports issued where the project requires independent verification.

Can you supply the rest of the load protection package?

Yes. Alongside paper corner protectors we supply dunnage bags, slip sheets, anti-slip paper, stretch film, packing strap and packaging tools, so a shipment can be specified as one coordinated protection system with matched performance and a single delivery schedule.
