PP/PET Strap Dispenser Manufacturers

Shanghai We Pack Co., Ltd. is a PP/PET Strap Dispenser manufacturer within the broader Packaging Tool line, alongside electric and pneumatic strapping machines, tensioners and buckles. These units are mobile organizers for large, heavy coils of polypropylene and polyester strapping — the same strap families we produce as PP Packing Strap and PET Packing Strap. A dispenser keeps payout tangle-free, moves the coil to the load instead of the load to the coil, and holds strap ready for tensioning and sealing at the container door, the pallet line or the bundling bench.

Founded in 2019 as a subsidiary of Shanghai Dreammao Packaging Technology Co., Ltd., we run a 10,000 m² facility with 120 employees, dedicated R&D, testing and quality control teams, and 9 production lines. Our work covers cargo securing, transport protection and loading optimization, so a dispenser is specified together with the strap, the tensioning tool and the packing station it serves — not as a standalone accessory.

The Dispenser Range: H405, PJ500 and P201

Three models cover the common coil formats and duty levels in PP and PET strapping. Each is built around the same working principle: a frame that carries the coil, a hub that lets it rotate under control, and a payout path that feeds strap to the operator without twists, kinks or tangles.

Mobility is part of the design intent across the range. The dispenser travels with the job rather than forcing operators to walk back to a fixed coil stand, which matters most where loads are strapped at the container door or at the end of a packing line.

Where the Dispenser Fits in a Strapping Workflow

Strapping is a three-part operation: payout, tension, seal. The dispenser owns the first part and influences the other two. When strap arrives flat and untwisted, the tensioner reaches working load with fewer pulls, the seal sits square, and the joint holds the tension that was set.

• Payout control: the coil rotates at the rate the operator pulls, so strap leaves the dispenser without twists or kinks.
• Coil handling: heavy coils stay on the dispenser between jobs; operators do not lift or re-spool them.
• Workstation mobility: the unit moves to the pallet, the container door or the bundling bench.
• Tool staging: tensioner, sealer, buckles and cutters stay within reach of the strap path.
• Waste reduction: fewer tangles and kinks mean less strap cut off and discarded per shift.

Matching Dispenser to Strap Type and Coil Format

PP and PET behave differently on payout. PP is more ductile and stretches under tension; PET is stiffer, carries higher tensile load and recovers less. A dispenser that performs well on one material is not automatically right for the other, which is why the model is selected against the strap and coil the site actually buys.

• Strap material: PP, PET, or a dual-material configuration for mixed programmes.
• Strap width and thickness: guide clearance and payout eye follow the strap cross-section.
• Coil mass and core diameter: hub, frame and brake are sized to the coil weight and core the plant receives.
• Coil width: narrow and wide coils need different lateral support on the hub.
• Payout direction: over-the-top or side payout, depending on how the operator pulls and where the load sits.
• Brake or drag: enough resistance to stop coil over-run without adding pull effort.

Configuration Options and Workstation Integration

Dispensers are configured around the packing station rather than sold as a single fixed build. The choices below are the ones that change how the unit behaves on the floor.

• Mobile frame with casters, or a fixed floor stand for a dedicated strapping bay.
• Hub sized to the coil core, with or without quick-release for fast coil changes.
• Adjustable payout arm and guide to set strap height at the operator's working position.
• Brake or drag element matched to coil mass and payout speed.
• Tool holder or tray for the tensioner, sealer, buckles and cutter.
• Finish, labelling and frame colour set to the plant environment and brand programme.

Where the dispenser feeds a semi-automatic or automatic strapping station, the payout height and strap path are aligned with the machine infeed so the operator is not fighting the dispenser between cycles. We confirm the interface points with the line layout before the order is released.

Engineering Value in Loading and Cargo Securing Projects

A dispenser earns its place where packing labour meets transport protection. In container stuffing, it can be positioned at the door so the operator straps units without leaving the load. In a warehouse, it can be assigned to a bay and shared across shifts. In production, it can feed a semi-automatic strapping station on the line.

• Strap consumption: less waste from tangles, re-work and discarded kinked strap.
• Labour time: fewer trips to a fixed coil and less manual coil handling per shift.
• Operator safety: no lifting of heavy coils and no loose strap loops on the floor.
• Load consistency: repeatable payout supports repeatable tension and joint quality.

We treat the dispenser as part of the same loading plan as dunnage bags, paper corner protectors and slip sheets. The objective is a load that arrives intact, with the securing system planned as one package rather than assembled from separate purchases.

Quality Approach and Acceptance

Our quality system runs from raw material to finished goods, supported by in-house R&D, testing and quality control teams. Packaging products in the range are tested to AAR, SGS and TUV standards, and the management system is built on ISO 9001 processes. Samples are available for trial before a production order, and OEM/ODM work is handled by the same engineering team that supports the standard range.

For dispensers, the acceptance points that matter are mechanical and practical:

• Frame rigidity and stability under a loaded coil.
• Hub fit and coil seating, checked against the core diameter supplied.
• Brake or drag behaviour at normal payout speed.
• Payout quality with the actual strap coil — flat, untwisted, no snagging.
• Rolling and tracking of the mobile frame on the plant floor.

Information We Use to Configure Your Solution

The configuration step is short when the strap and station are known. These are the inputs that determine the model, the hub and the payout geometry.

A photo or drawing of the current coil and workstation shortens the configuration step further, particularly where the site is replacing a fixed coil stand or a homemade payout arrangement.

Documentation, Packaging and Delivery Scope

The standard scope is the dispenser unit, assembly and setup instructions, and any consumables ordered with it. Where the dispenser is part of a larger strapping package, we coordinate packing lists so the dispenser, strap, buckles and tools arrive together and can be commissioned in one visit to the bay.

Dispensers are mechanical units with a short wear list: casters, brake element and strap guide. We identify these against the model reference so they can be planned into routine maintenance rather than discovered during a breakdown. Units ship from our Shanghai factory, roughly 25 km from Shanghai Port, which keeps export consolidation straightforward for mixed orders.

Frequently Asked Questions

What is the difference between the H405, PJ500 and P201 dispensers?

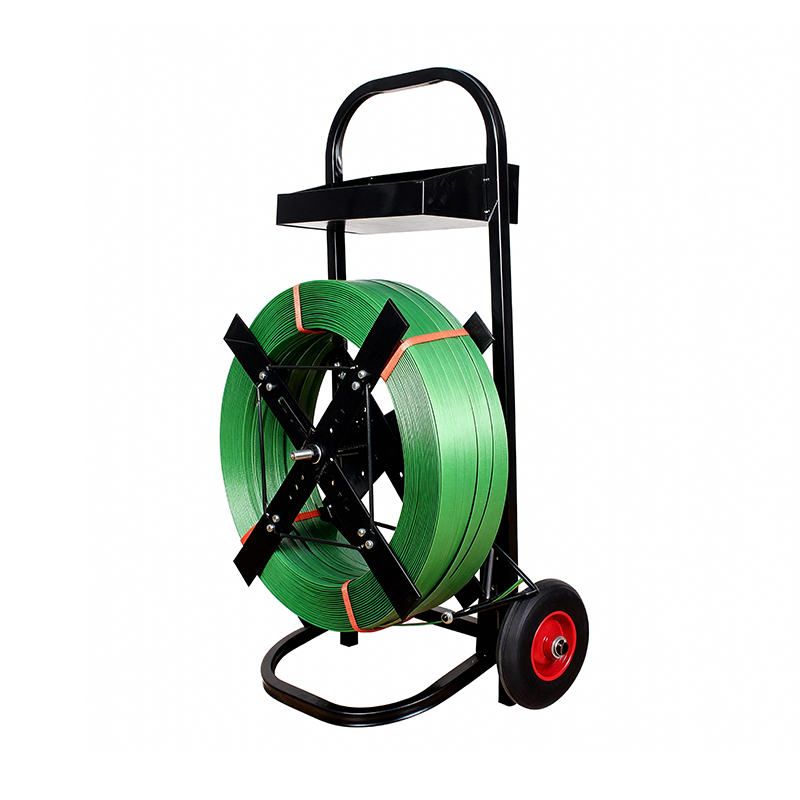

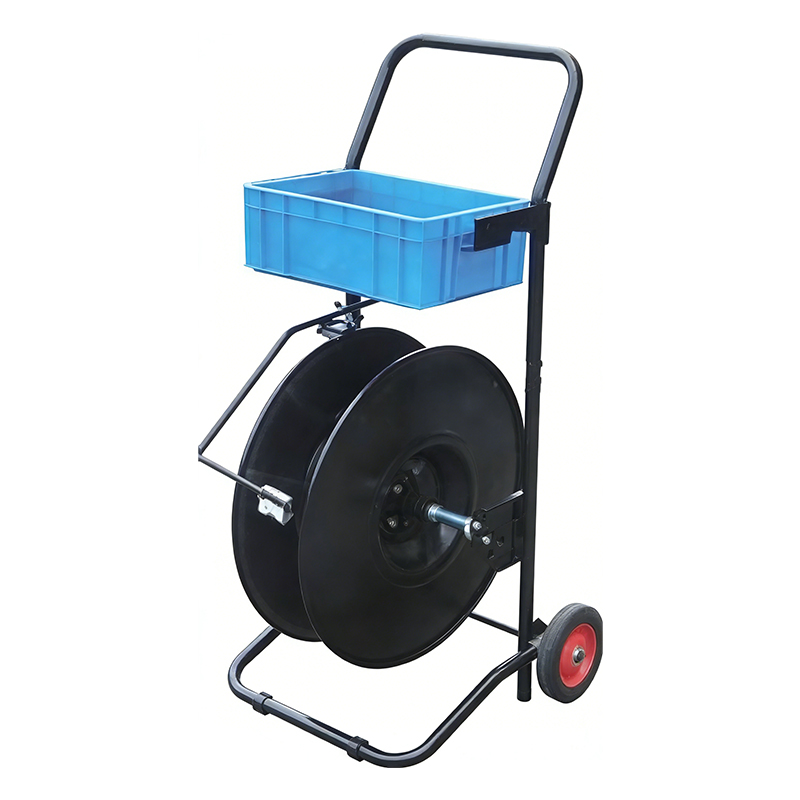

The H405 is the premium PET platform for large, heavy coils where payout control and frame stability are the priority. The PJ500 is the economical dual-material unit for sites running both PP and PET. The P201 is the dedicated PP dispenser for carton bundling and lighter unitizing work.

Can one dispenser run both PP and PET strap?

Yes — the PJ500 is built for that. PP and PET differ in stiffness and stretch behaviour, so the payout eye and brake setting are matched to the material being run. Where a site uses both, we set the dispenser up for the dominant strap and confirm the changeover points for the other.

How do I choose between a mobile dispenser and a fixed coil stand?

Mobile units suit container stuffing, dispatch bays and multi-point packing where the load moves. A fixed floor stand suits a dedicated strapping bay with a stable layout and a single strap type. Both are available, and the choice usually follows the workstation type rather than the strap.

Do you supply the strap and tools with the dispenser?

We do. PP and PET packing strap, electric and pneumatic strapping machines, manual tensioners, automatic strapping machines and buckles come from the same portfolio, so the dispenser, strap and tensioning tool can be specified as one system with a matched strap path.

Can the dispenser be customized with our branding?

OEM/ODM customization covers frame colour, labelling and packaging to your programme, alongside the mechanical configuration. Samples are available for trial before a production order so the build can be checked on your own strap coil.

What information do you need to quote a dispenser?

Strap material, width and thickness; coil mass, core diameter and coil width; the workstation type and tensioning tool in use; throughput per shift; and any branding or packaging requirements. With those inputs we can confirm the model, the hub and the payout configuration.
